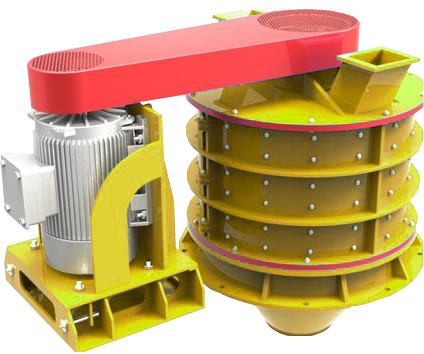

Trimax PFL Vertical Composite Crusher
When You Need Maximum Reduction
The PFL Vertical Composite Crusher has an extremely high reduction ratio, accepting feed material sizes up to 240mm and discharging output material with 70 – 90% finer than 3mm.
HIGH PERFORMANCE BY DESIGN
Progressive crushing every step of the way.
Optimised crushing chamber and multi-stage rotor design provides maximum yields for required high quality end products.
Feed material entering the crushing chamber from the top is immediately met with the high centrifugal force created by the high velocity spinning multi-stage rotor.
This material is then continuously impacted multiple times by the rotor hammers and against the crusher body’s impact liners as it passes downwards through the crusher body.
The space cavity progressively becomes smaller towards the bottom of the crusher body.
This highly efficient method of crushing has relatively low power requirements , and results in reduced operational cost per tonne of production.
Feed Material
80 – 240mm
Discharged Material
< 3mm, 70 – 90%

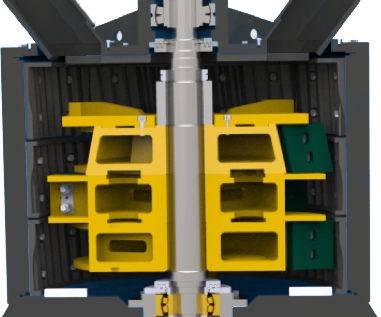

Rotor Assembly
KEY BENEFITS
The PFL Vertical Composite Crusher is an efficient & energy-saving crusher. Suitable for crushing soft to medium hardness. When used with a mill, the total output can be increased by approximately 40%. At the same time, power consumption can be reduced by about 30%.
It operates with low noise and vibration levels, is easy to operate, and has a relatively small footprint. It even has an optional cooling system to crush high temperature materials up to 150 degrees Celsius.
Both high wear-resistant manganese and high chrome moly wear parts are installed within the PFL Vertical Composite Crusher.
| MODEL | INPUT SIZE MM | OUTPUT SIZE MM | ROTOR SPEED RPM | MOTOR KW | CAPACITY TPH |
|---|---|---|---|---|---|
|
PFL-750 III |
< 100 |
< 3 , 70 - 90% |
800 - 1350 |
45 |
8 - 20 |
|
PFL-1000 III |
< 120 |
< 3 , 70 - 90% |
650 - 980 |
55 |
15 - 30 |
|
PFL-1250 III |
< 150 |
< 3 , 70 - 90% |
510 - 770 |
90 |
30 - 45 |
|
PFL-1250 IIIX |
< 150 |
< 3 , 70 - 90% |
510 - 770 |
90 |
30 - 45 |
|
PFL-1500 III |
< 180 |
< 3 , 70 - 90% |
430 - 640 |
132 |
50 - 70 |
|
PFL-1500 IIIX |
< 180 |
< 3 , 70 - 90% |
430 - 640 |
132 |
50 - 70 |
|
PFL -1750 III |
< 200 |
< 3 , 70 - 90% |
420 - 540 |
160 |
70 - 100 |
|
PFL-1750 IIIX |
< 200 |
< 3 , 70 - 90% |
420 - 540 |
160 |
70 - 100 |
|
PFL-2000 III |
< 220 |
< 3 , 70 - 90% |
360 - 500 |
200 |
90 - 120 |
|
PFL-2300 IIIX |
< 240 |
< 3 , 70 - 90% |
330 - 450 |
250 |
120 - 160 |
|
PFL-2500 III |
< 220 |
< 3 , 70 - 90% |
360 - 500 |
200 |
90 - 120 |

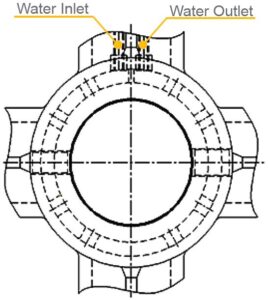

WATER COOLING SYSTEM
For added versatility, an optional water cooling system is available to crush high temperature materials up to 150 degrees Celsius.

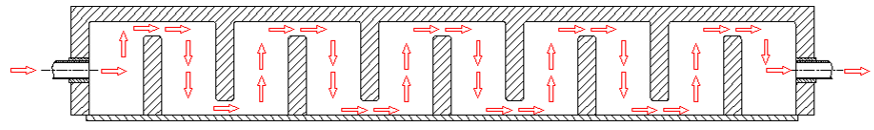

Water Flow
For Materials Up to 150 Degrees Celsius
- Optional Water Cooling System.
- High Temperature Resistant Bearings.
- High Temperature Resistant Grease will be required.
