ADPLUS VIBRATING SCREEN

EFFICIENCY COUPLED WITH HEAVY-DUTY TOUGH CONSTRUCTION

ADPLUS Vibrating Screen

Trimax ADPLUS Vibrating Screen offers industry-leading screening efficiency with heavy-duty tough construction. The unique “Butterfly” design of the centrifugal counter weights not only allows flexibility in terms of amplitude, more importantly, it reduces unnecessary stress on the side walls of the vibrating screen. All Trimax ADPLUS vibrating screens are installed with well-trusted FAG bearings.

All these are crucial to the Trimax ADPLUS Vibrating Screen’s long-term durability.

Counterweight_Trimax Website

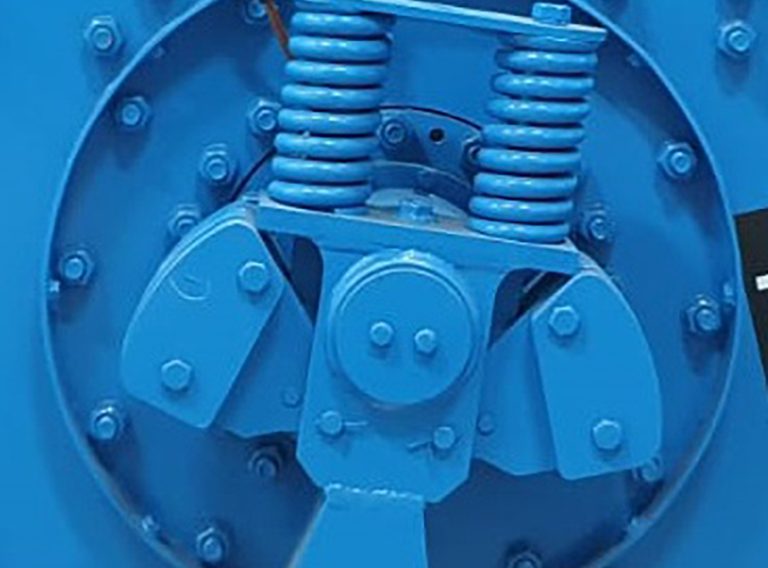

Innovative Centrifugal Counter Weight Assembly

This innovative feature eliminates excessive resonance motion when the screen is starting or stopping. At start-up, the counter weight assemblies have a small “mass x radius” value. This means that they accelerate to operating speeds with a smaller driving torque and drive motor than for a conventional vibrating screen with fixed counter weight.

Pulley_Trimax Website

Screen Drive

The driving pulley may be fitted to either side without disturbing the shaft. This means that the drive can be positioned to suit the installation. Depending on the screen size, two or four ‘C’ section v-belts are required for the drive.

Guard_Trimax Website

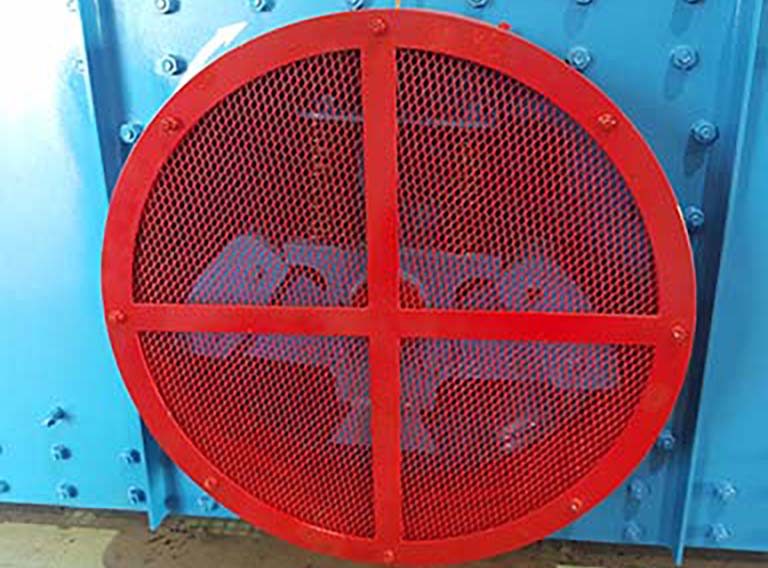

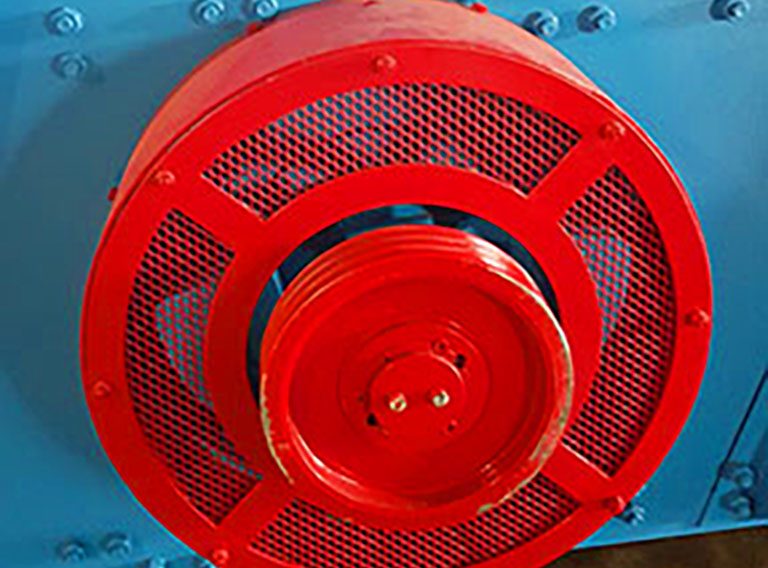

Guards

There are fully enclosed sttel plate guards over the counter weight assemblies. They are easily removable to allow inspection or maintenance of the counter weights or mechanism.

Screen Body_Trimax Website

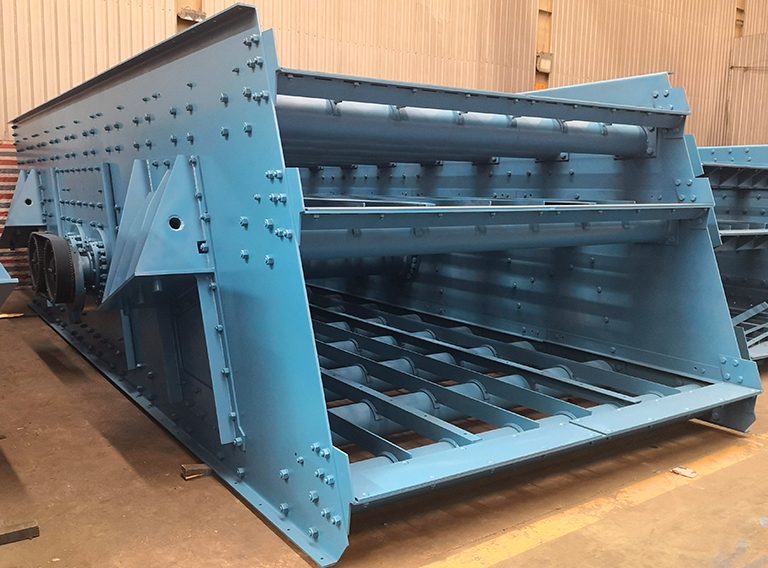

Screen Body

Structural strength of the screen body is enhanced by bending the entire top length of the screen body. This crucial features prevents horizontal warping of the screen side plates. Enabling this well-reinforced screen body to have long life without additional weight. Vertical stiffening angle irons add additional rigidity to the side plates.

Rubber_Buffer_Strips_Trimax Website

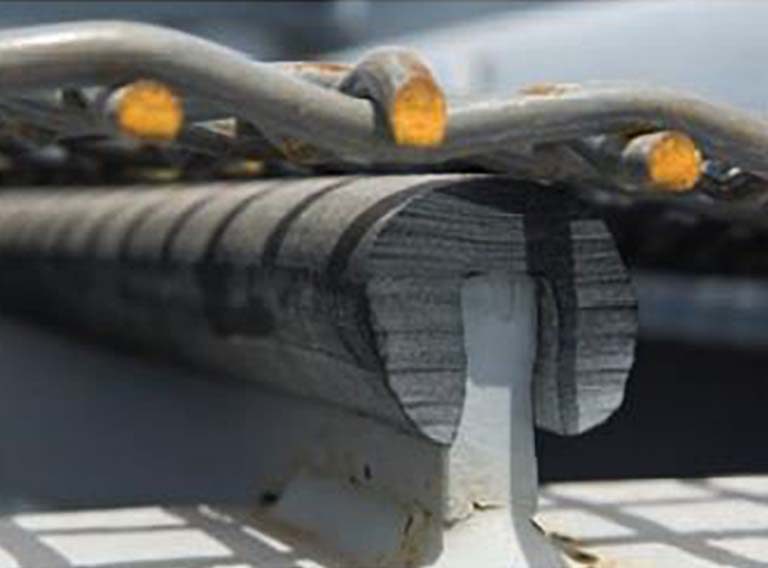

Rubber Buffer Strips

Self-clamping, wear resistant rubber buffer strips are fitted to the screen frame mesh supports and prevent metal-to-metal contact. This cushioning increase screening media wear life.

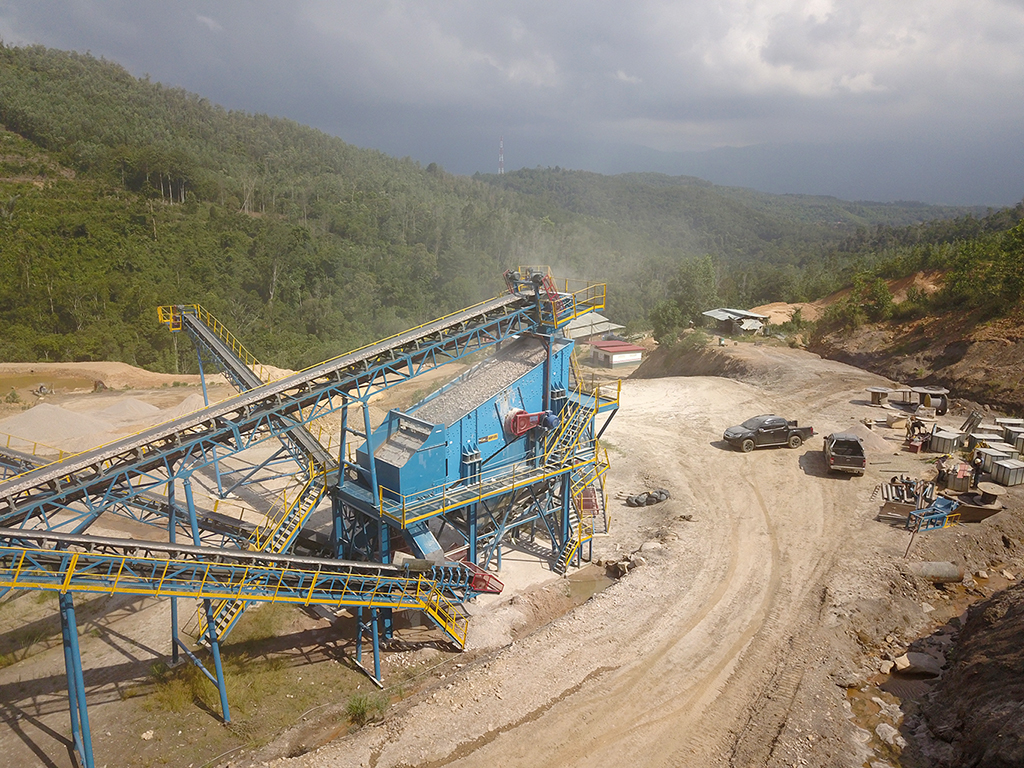

Vibrating Screen_Trimax Website10

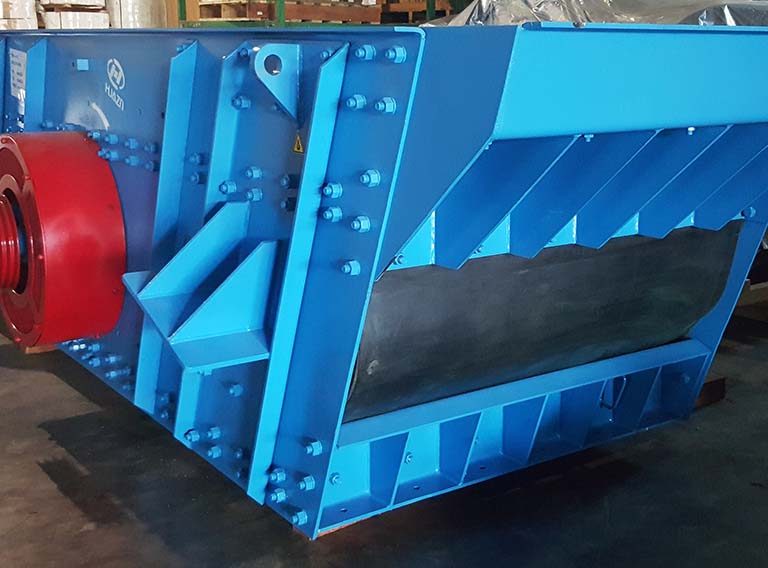

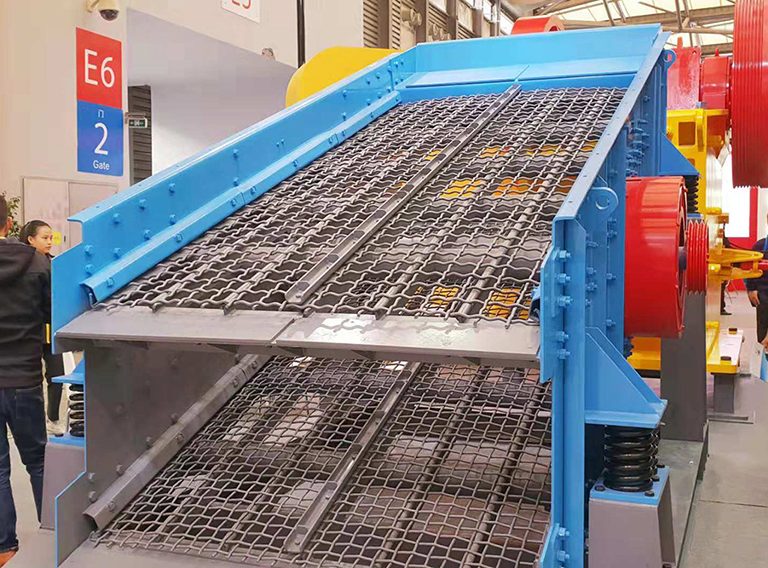

Feed Box & Discharge Spouts

A feed box absorbs the impact of incoming material, reduces wear on the screening media and makes more effective use of the screen’s deck area. A feed box with replaceable liners is fitted to all screens.

Discharge spout simplify the installation of chutes. Discharge spouts with replaceable liners are standard on all screens.

Back Cove_Trimax Website

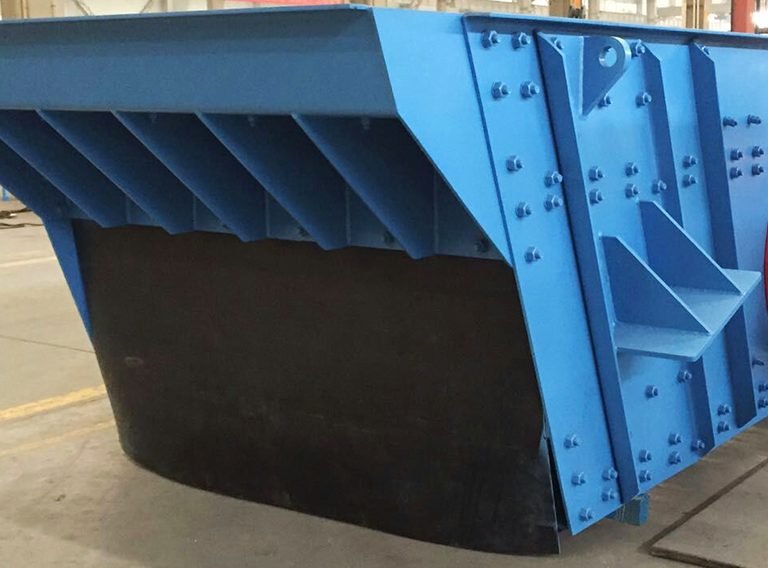

Flexible Back Plate Cover

Every ADPLUS vibrating screen is fitted with a flexible rubber back plate cover above each deck. This allows inspection and removal of the screening media.

Bearing_1_Trimax Website

Reliable FAG Bearings

The FAG self-aligning, double row, spherical roller bearings were developed specifically for vibrating screens. To eliminate locking of the bearing to the shaft (which leads to premature failure), the inner rings of the bearings have self-lubricating sleeves. The bearings are protected from dust and dirt by grease-purged labyrinth seals. Grease lubrication is standard for all ADPLUS vibrating screens.

Bearing_2_Trimax Website

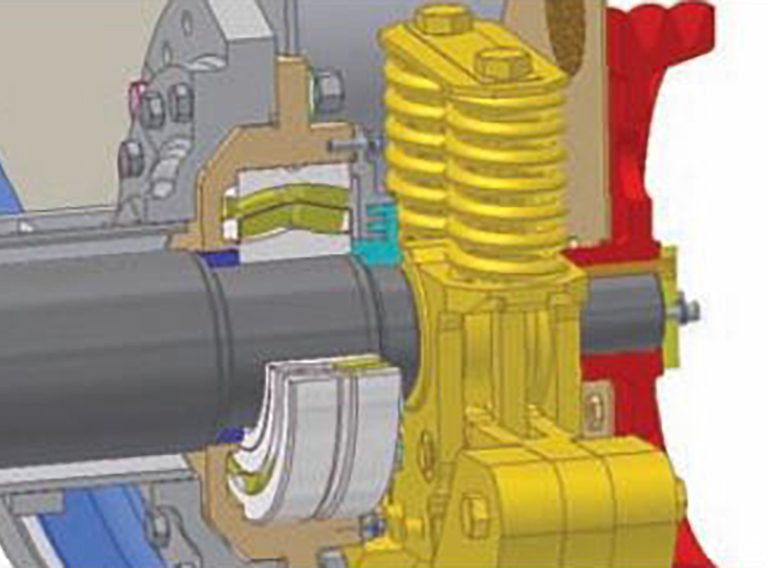

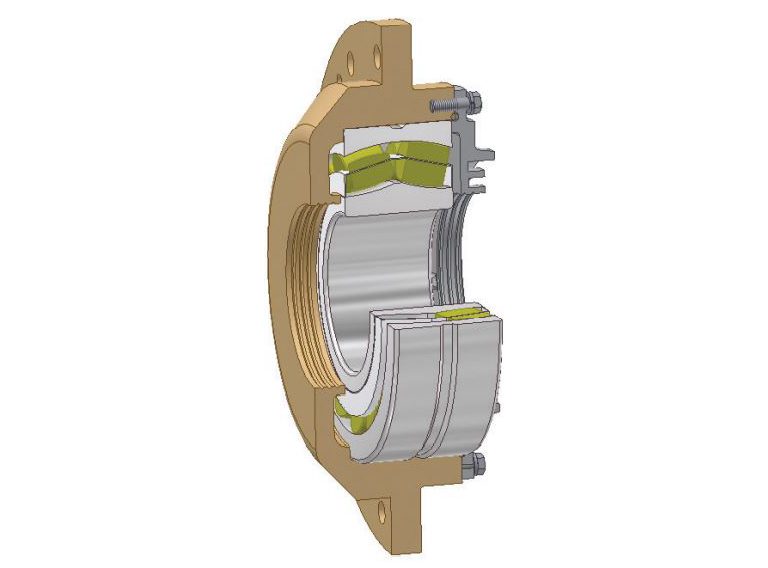

Self-Enclosed Bearing Cartridge

The load-carrying roller bearings in the vibrating mechanism, together with their mounting cartridges and cover, can be assembled in the dust-free atmosphere of a workshop and fitted to the screen in the field as a complete unit. This means the bearings are not exposed to dust particles during assembly and can be relied on for their rated lifetime.

cof

Heavy Duty Double Shaft Design

Our 2 largest ADPLUS vibrating screen models (i.e. 21024 and 31024) have grease-lubricated twin shaft design as standard. This ensures their durability and reliability in heavy duty application.

MODEL MOTOR KW SCREN SIZE
1512
5.5
1524 X 3660 X 1 DECK
2512
7.5
1524 X 3660 X 2 DECKS
2612
11
1830 X 3660 X 2 DECKS
2616
15
1830 X 4880 X 2 DECKS
2716
15
2134 X 4880 X 2 DECKS
3716
15
2134 X 4880 X 3 DECKS
2620
15
1830 X 6096 X 2 DECKS
3620
18.5
1830 X 6096 X 3 DECKS
MODEL MOTOR KW SCREN SIZE
2720
18.5
2134 X 6096 X 2 DECKS
3720
18.5
2134 X 6096 X 3 DECKS
2820
22
2438 X 6096 X 2 DECKS
3820
37
2438 X 6096 X 3 DECKS
2824
30
2438 X 7316 X 3 DECKS
21024 *
2 X 37
3000 X 7300 X 2 DECKS
31024 *
2 X 37
3000 X 7300 X 3 DECKS

* Comes with twin shaft design.
