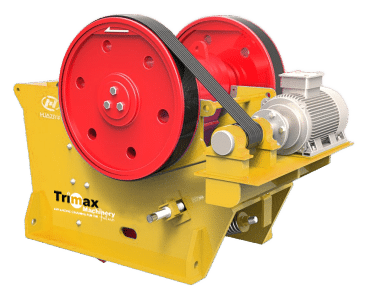

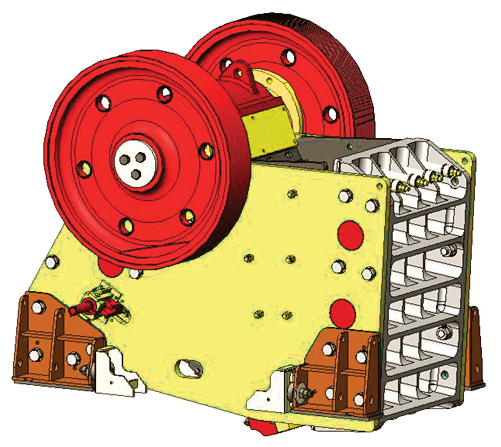

Trimax JC Jaw Crusher
The Trimax JC Jaw Crusher has been designed with unrivaled reliability in mind. It has several exceptional in-built features that will meet your material reduction requirements.
Curious to find out more? Click to download the Trimax JC Jaw Crusher brochure.
Introducing the Trimax JC Jaw Crusher
Features that Matter
These essential qualities have been thoughtfully integrated into the Trimax JC Jaw Crusher. Ensuring that it will meet your operational needs efficiently and reliably.
High Capacity
- “V” Shaped Symmetrical Crushing Chamber
- Deep Crushing Cavity
- Small Nip Angle
- Appropriate High Rotation Speed
- Large Aggressive Stroke
These attributes collectively contribute to maximizing the capacity and productivity of the equipment, making it well-suited for demanding crushing applications.
Closed Side Setting (CSS) Adjustment

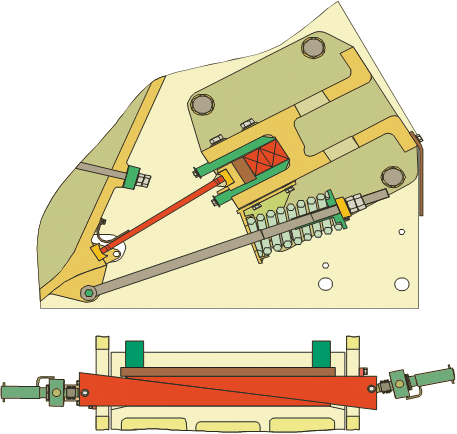

The use of wedges to adjust Closed Side Setting (CSS) allows convenient operation and faster adjustment for the operator.
Adjustments to the CSS can be made without requiring the crusher to be stopped for long periods. Hydraulic wedge systems allow for faster adjustments compared to older shim methods.
Large Bearings

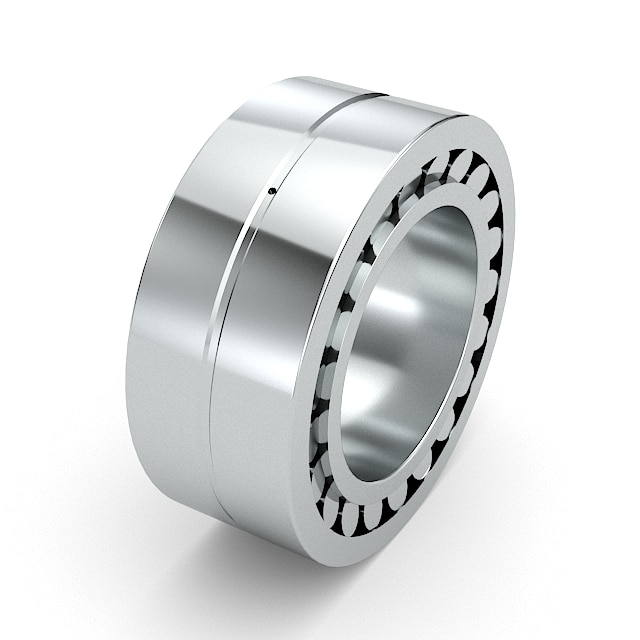

The Trimax JC heavy duty jaw crusher is installed with large bearings that allow it to have a high load-bearing capacity and enables a longer service life.
- Able to Handle Heavier Loads
- Reduced Bearing Stress
- Durability
- Resistance to Wear
- Reduced Vibrations
- Efficient Power Transmission
- Fewer Breakdowns
Enhanced Toggle Spring Assembly

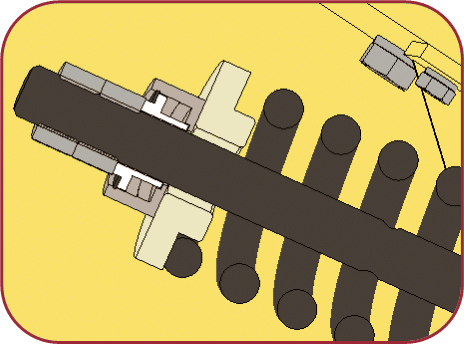

The inclusion of a thrust bearing within the toggle spring assembly serves multiple purposes.
Primarily, it provides crucial support for handling heavy loads, ensuring smoother functionality and reduced wear on components. Additionally, the presence of the thrust bearing facilitates quick and straight-forward adjustments during tensioning and loosening of the spring. This feature significantly saves time and effort for operators, allowing them to maintain optimal spring tension with minimal downtime or hassle
Improved Bearing Housing Design

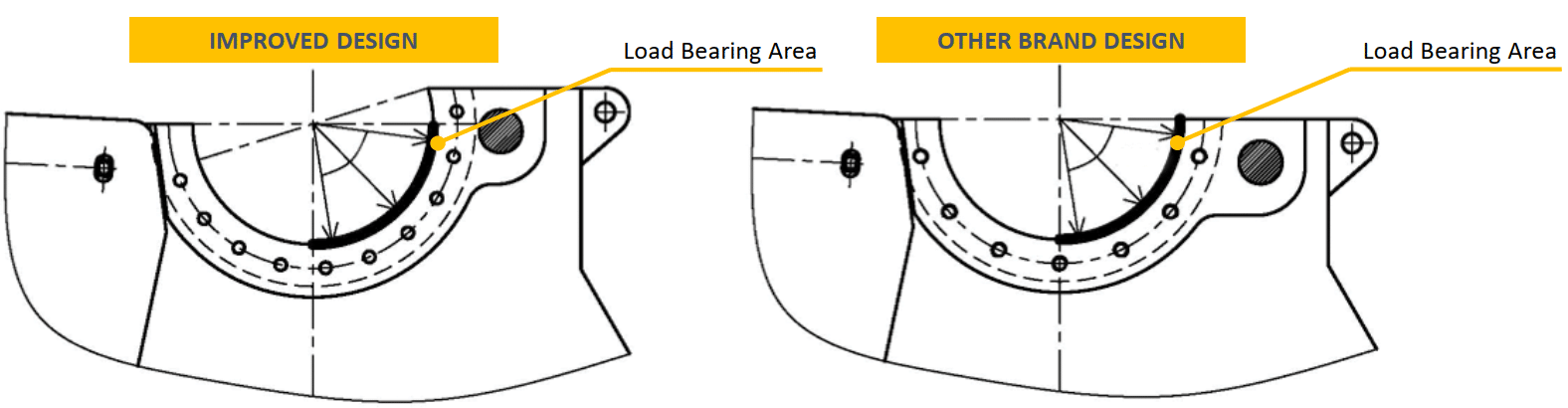

- Strengthened Load Bearing Capability with our Improved Bearing Housing Design
- Increased Number of Fastening Bolts
- Improved Reliability of the JC Jaw Crusher Compared to Other Brand Jaw Crushers
These attributes collectively contribute to the JC Jaw Crusher’s reputation of “Unrivalled Reliability”.

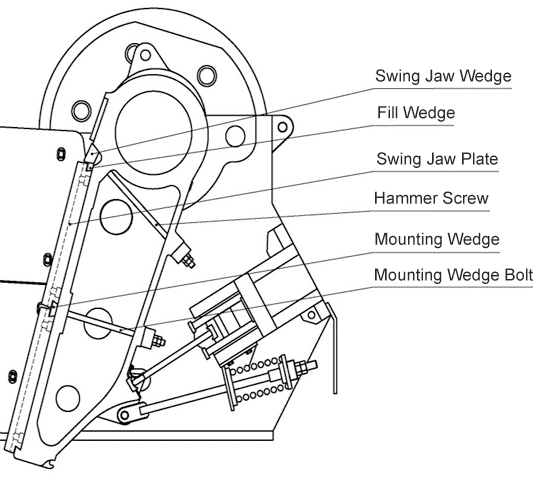

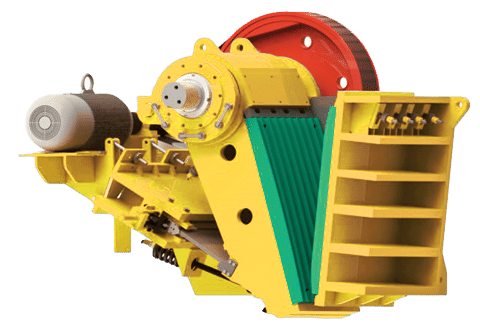

Segmented Jaw Plates
For larger models only, the JC Jaw Crusher comes with segmented jaw plates.
- Reduced weight of a single jaw plate
- Increased utilization efficiency of each jaw plate
- Lightens the lifting weight
- Middle mounting wedge bolt can be lifted out without disassembly of the jaw plate
- Both fixed and swing jaw plates can be rotated multiple times. Single piece jaw plates can only be rotated once

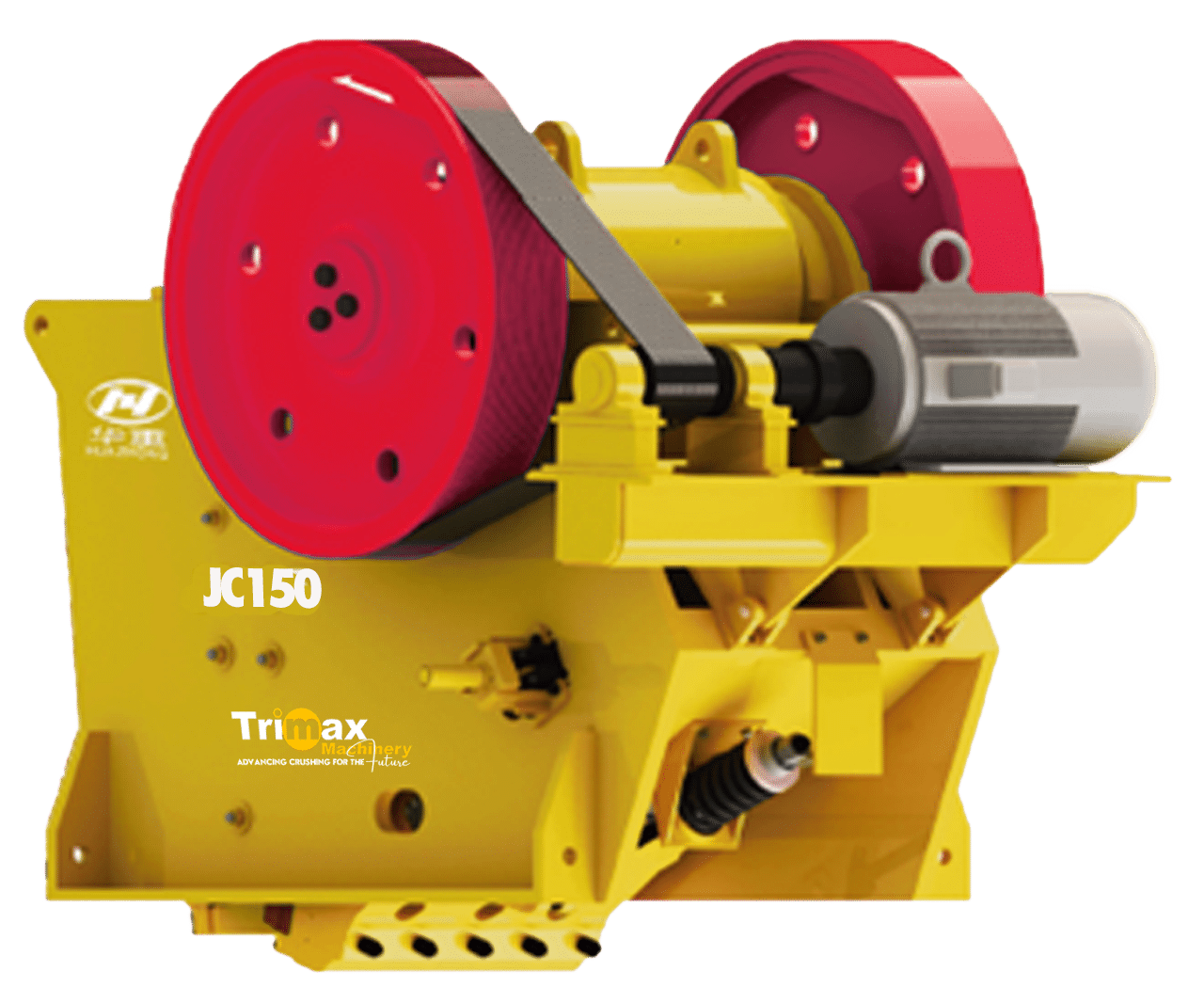

Integrated Motor Stand Design
The Trimax JC Jaw Crusher comes standard with an integrated motor stand design.
- Simplifies Site Preparation
- Faster & Easier Installation at Site
- Small Foot-Print
- Belt is Naturally Tensioned. Less Likely to Slip and Easier to Adjust
Integrated Bearing Housing
Bearing housing integrated with swing jaw stock has several benefits.
- Increased Power Delivery
- Contributes to the Swing Jaw Stock’s Durability
- Enables Easy Transportation
| MODEL | MOTOR KW (HP) | MAX FEED MM | FEED OPENING MM | CAPACITY TPH |
|---|---|---|---|---|
|
JC90 |
90 (125) |
464 |
900 X 600 |
105 - 390 |
|
JC100 |
110 (150) |
560 |
1060 X 760 |
150 - 500 |
|
JC110 |
132 (175) |
640 |
1150 X 760 |
165 - 520 |
|
JC120 |
160 (200) |
700 |
1200 X 870 |
175 - 540 |
|
JC130 |
185 (250) |
800 |
1300 X 1000 |
270 - 830 |
|
JC150 |
200 (270) |
960 |
1400 X 1200 |
240 - 880 |
|
JC160 |
250 (340) |
960 |
1600 X 1200 |
430 - 1145 |
|
JC200 |
400 (545) |
1200 |
2000 X 1500 |
630 - 1435 |
Performance figures are approximate and only give an indication of what the crusher can do. Degree of reduction, material’s crushability, size of feed material, and moisture content of feed material, etc. all affect the crusher’s performance.
OPTIONAL JAW CRUSHER ADD-ONS
These optional features are also available to enhance the machinery reliability or ease maintenance of your Trimax JC Jaw Crushers.

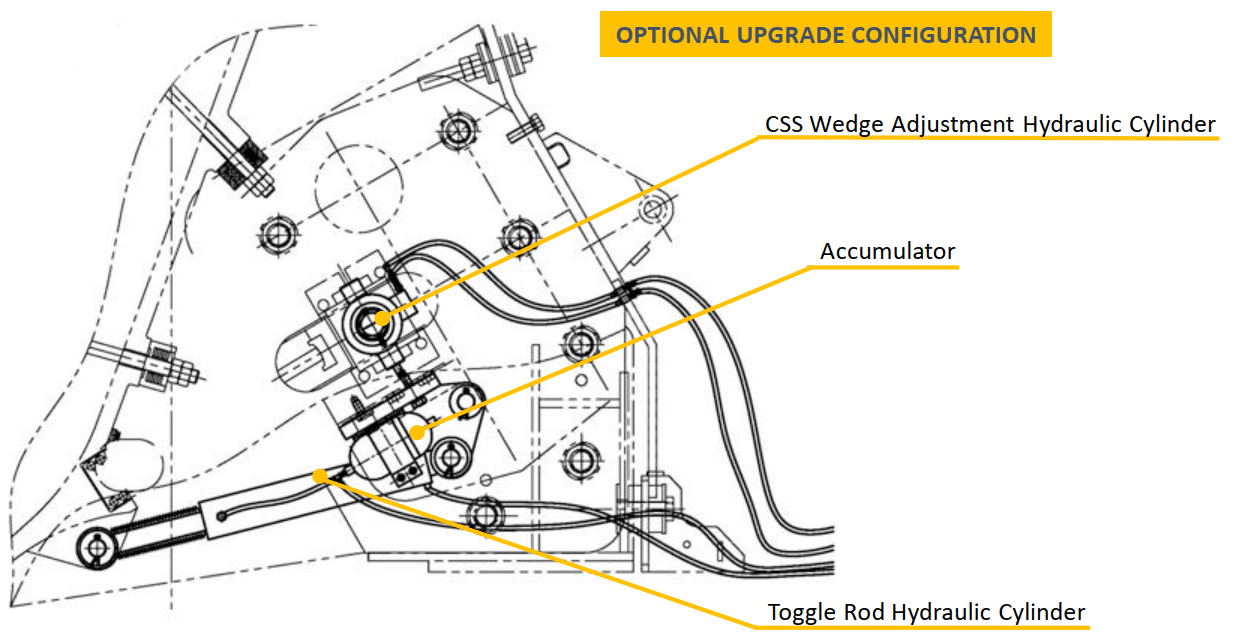

Hydraulic CSS Wedge Adjustment

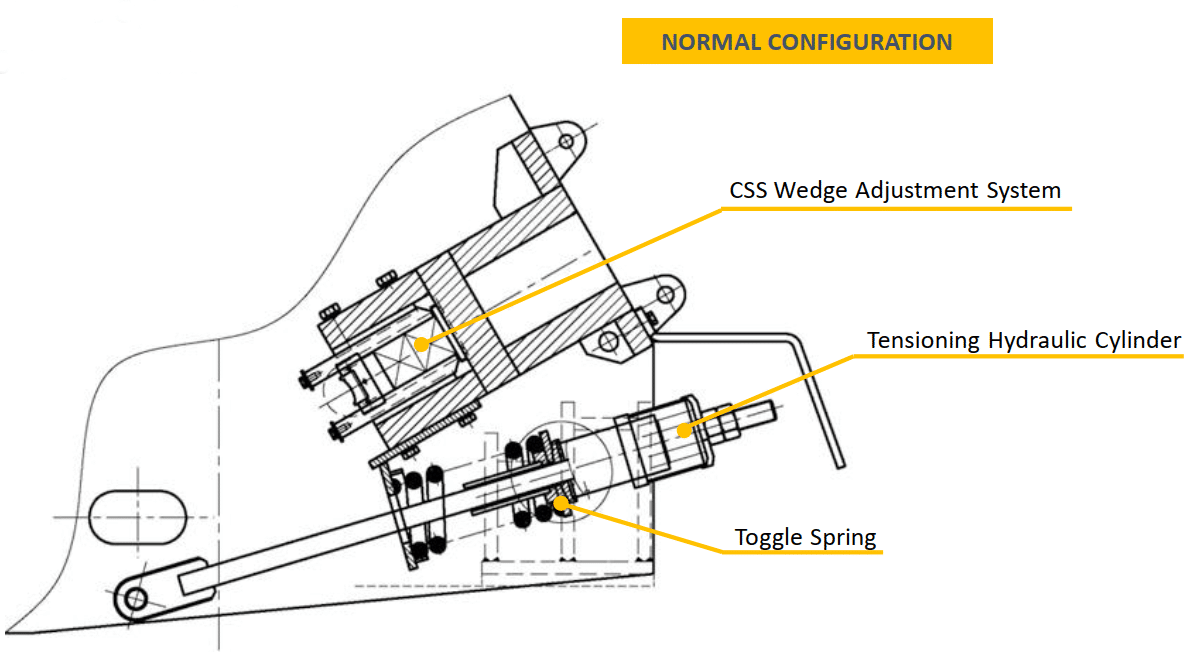

The standard configuration for the Trimax JC Jaw Crusher comes with a manual CSS Wedge Adjustment. The optional upgrade configuration allows for hydraulic CSS Wedge Adjustment.

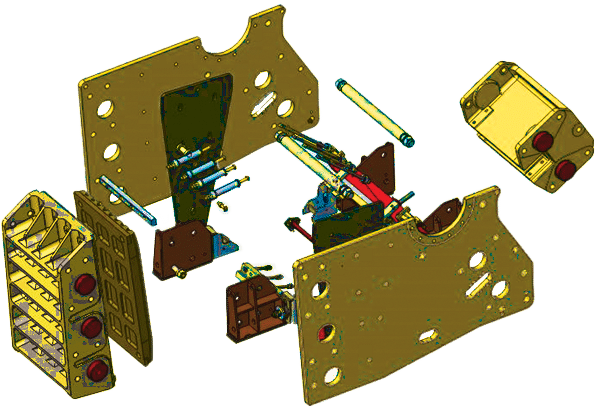

Optional Segmented Crusher Main Body

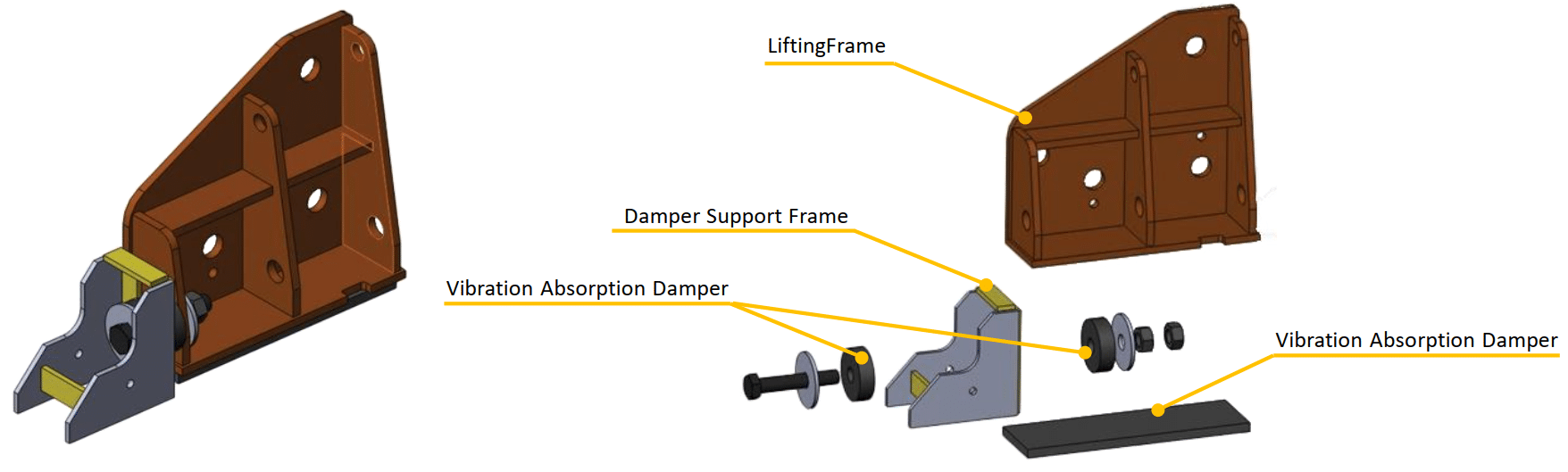

Upon request, a segmented crusher main body instead of a welded main body may be supplied for an additional cost. The segmented crusher main body option will come with Corner Support Dampers instead of standard crusher mounting bolts.
Monitoring Sensors

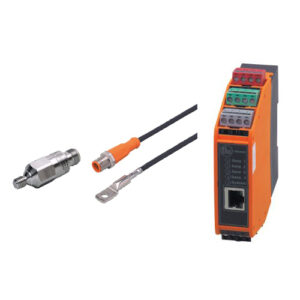

Temperature Monitoring
Optional temperature sensors for bearings can be supplied with your Trimax JC Jaw Crusher, enabling real-time monitoring of the bearings.
Auto-Greasing
Better Protection of Bearings

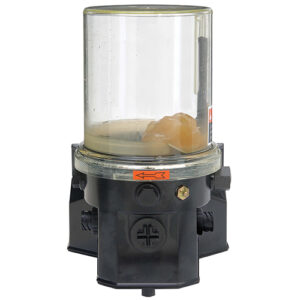

Optional auto-greasing of the Trimax Trent Jaw Crusher’s bearings is now possible with the supply of a lubrication pump system.
Frequent and small measured quantities of greasing gives the bearings better protection as opposed to the common practice of pumping grease only once a day.
