Trimax DHM High Pressure Grinding Roll

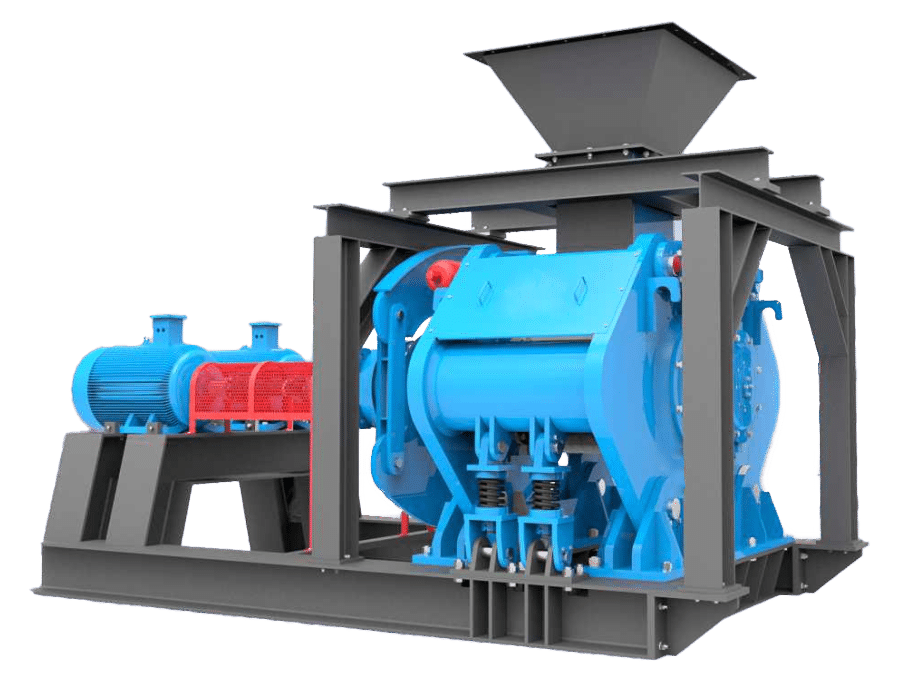

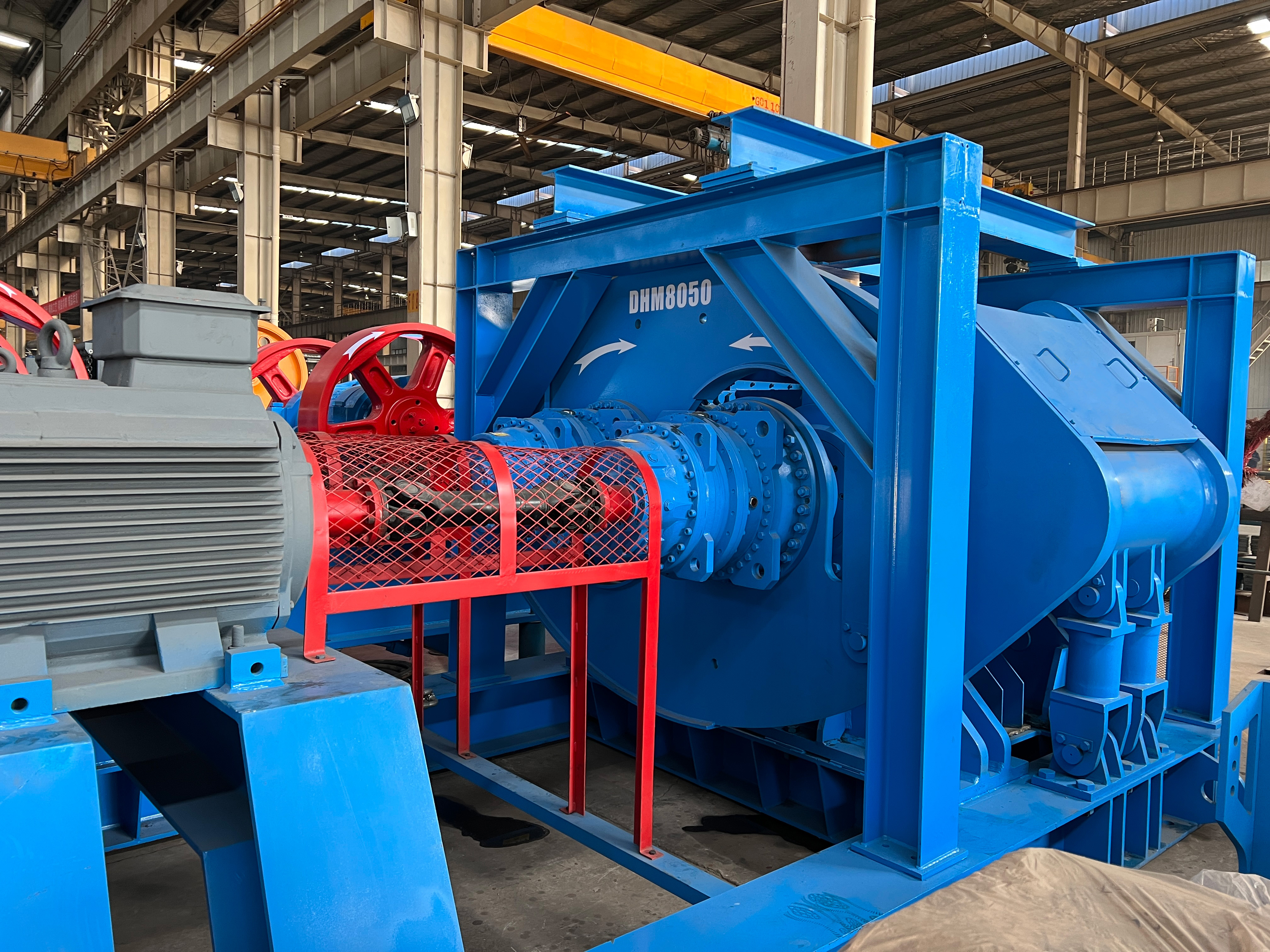

Introducing the Trimax DHM High Pressure Grinding Roll
Unleashing Ultra Grinding Power and Efficiency

The DHM series high-pressure roller mill is a newly developed and designed high-efficiency fine and ultra-fine crushing machinery with excellent adaptability. It uses a pre-set crushing pressure, a hydraulic cylinder and an accumulator to push two crushing rollers running in opposite directions and ensure the pressure stability during the entire crushing process, so as to apply a high-pressure crushing of the material between the two rollers.

This machinery can be widely used in the fine crushing and grinding of various materials in many fields such as construction, mining, and metallurgy, and can produce fine-grained products of various specifications. This equipment can also be used for fine-grained grinding of various metallurgical slags, simplifying the processing technology of metallurgical slags, making the tailings finer, and convenient for subsequent grinding processing.

Wide Range of Applications

  • Sandstone
  • Limestone
  • Metallurgical Slag
  • River Gravel
  • Iron Ore
  • Basalt
  • Copper Ore
  • Granite
MODEL ROLLER SIZE DIA. x LENGTH MM MAX FEED SIZE ROLL SPEED RPM MOTOR KW CAPACITY TPH
DHM800/500
800 X 500
18
30.1
2 x 132kW, 4P
70 - 120
DHM1000/625
1050 X 625
25
24.9
2 X 315kW, 4p
120 - 250
DHM1200/750
1200 X 750
30
21.8
2 X 500kW, 6P
200 - 630
DHM1500/900
1500 X 900
36
21.1
2 X 710kW, 6P
320 - 630

Structural Performance Characteristics

  •  A high-pressure crushing mechanism is adopted to enable highly efficiency crushing, larger crushing ratio and wider adaptability.
  • Automatically adjust the roller surface gap to keep the set crushing force constant, so that the product particle
    shape is uniform and the particle size is finer.
  • High wear-resistant alloy material and inlaid roller surface lining structure enables a longer service life and omits the need to dismantle the machinery for replacement.
  • Equipped with a reliable hydraulic control system, the machinery has an overload protection function.
  • Different working pressures can be set according to different working conditions.
  • The crushing roller applies a constant non-impact crushing pressure to the material, with low noise and generates minimal dust.

When you need fine and ultra fine products, the Trimax DHM High Pressure Grinding Roll may be the right machinery for you. Curious to find our more?
