CHALLENGER CMC

Mobile Crushing & Screening Plants

Since 2008, Trimax Machinery has established a reputation for high performance products that delivery practical solutions to solve today’s problems.

Continuing with this tradition, our Trimax Challenger CMC Mobile Crushing & Screening Plants incorporate high quality, state-of-the-art technologies with superior in-built robustness and inherent practicality. That’s precisely why they were designed.

COMMON FEATURES & FUNCTIONALITIES

Large Feed Hopper

Maximised productivity and trouble-free feeding thanks to the high capacity feed hopper. In addition, in some models, the hopper volume may be optionally increased by hydraulically extending the hopper walls.

Diesel-Electric Drive

With a high performance and powerful diesel engine onboard electrically driving the crushers and conveyors, resulting in a highly reliable, operationally economical, and environmentally conscious crushing & screening operation.

Self-Cleaning Overband Magnet

Installed as standard preventive safety equipment in all Trimax Challenger CMC Mobile Jaw Crushers and Horizontal Shaft Impactors to effectively remove unwanted tramp iron from the main discharge conveyor, the self-cleaning overband magnet ensures uninterrupted optimal production of the entire crushing line.

Intelligent PLC with Wireless Remote

Simple yet intuitive PLC system guarantees the user optimal control over the initial set-up once the plant arrives on site and during subsequent operation, even via wireless remote.

Heavy Duty Tracks

Reliable heavy duty tracks that offer superior grip in muddy conditions enable stability and flexible mobility within the site.

Robust Structural Steel Chassis

Strong yet compact steel chassis is crucial for the plant to withstand all the tough load-bearing pressures it expects to encounter during normal operations.

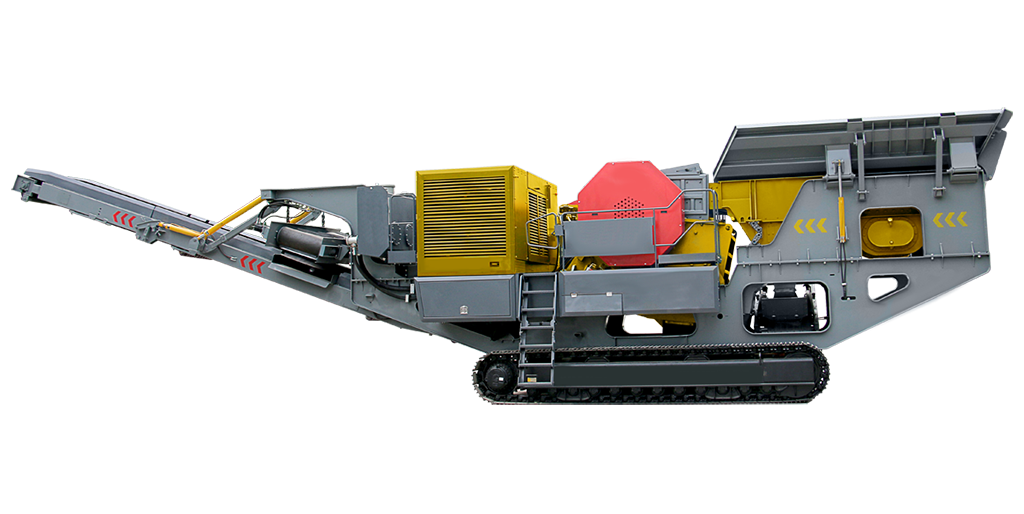

Mobile Jaw Crusher

In almost all scenarios, Trimax Challenger CMC Jaw Crushers will likely be the first machine to be used in any crushing operation. That is why we understand how important it is for our Trimax Challenger CMC Jaw Crushers to be fundamentally built tough and have an uncompromising design more than adequate to handle any type of crushing condition it might encounter.

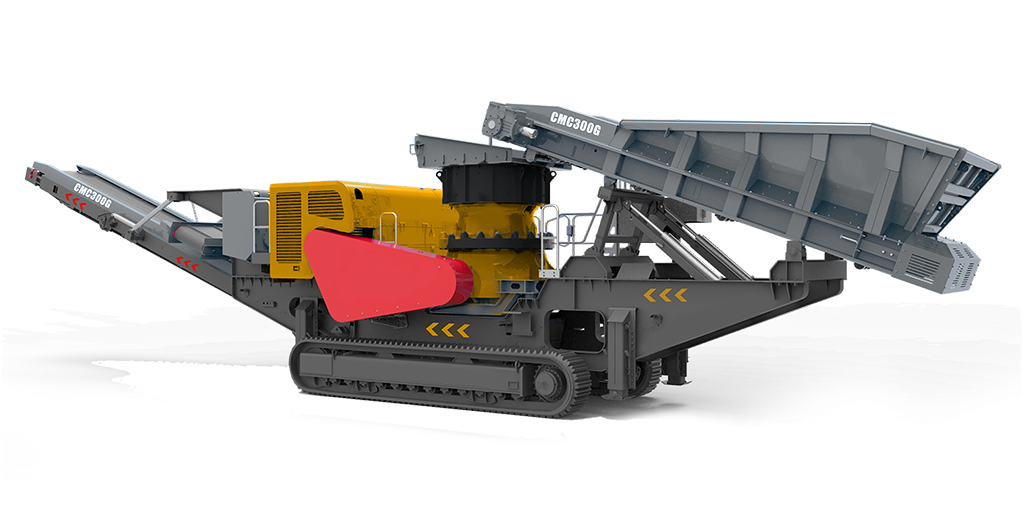

Mobile Cone Crusher

Trimax Challenger CMC Cone Crushers are built around our reliable and high capacity NSX / NHX Cone Crushers, commonly used for secondary and tertiary crushing in multi-stage applications. With the Trimax Automated Control System (ACS), automated real-time CSS monitoring & control ensures that your Trimax Challenger CMC Cone Crusher is constantly  operating at optimal levels and producing the best possible product shape.

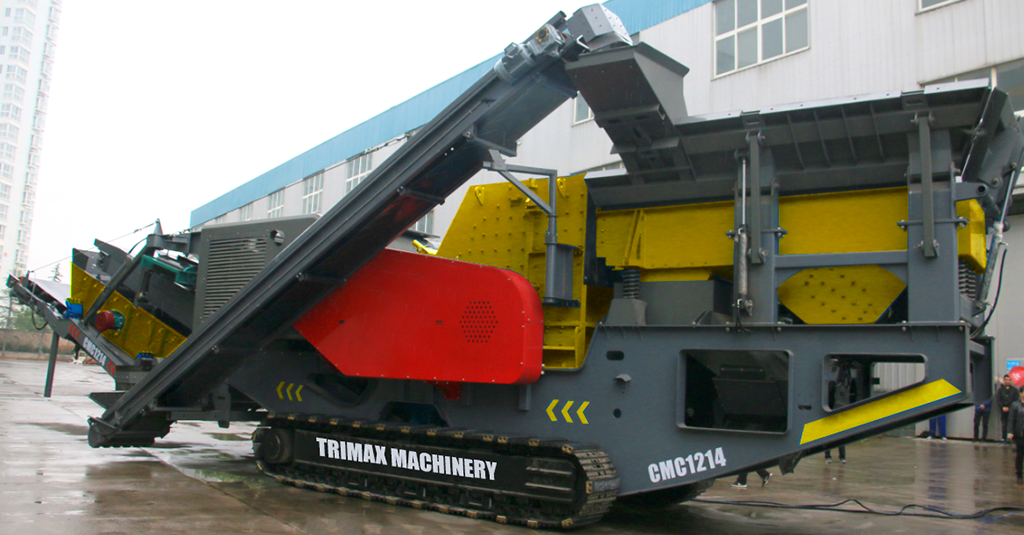

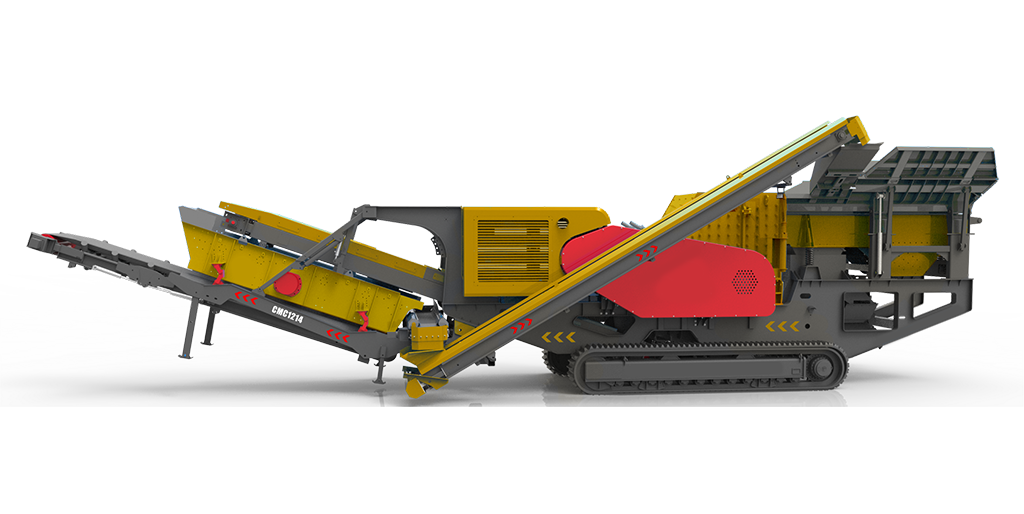

Mobile Horizontal Shaft Impactor

What sets the Trimax Challenger CMC Horizontal Shaft Impactor apart form the rest of the competition is its innovative three (primary, secondary, & tertiary) crushing zones within its crushing chamber design, enabling it to achieve higher discharge size control and accuracy, higher reduction ratios, high production volumes, and better shaping.

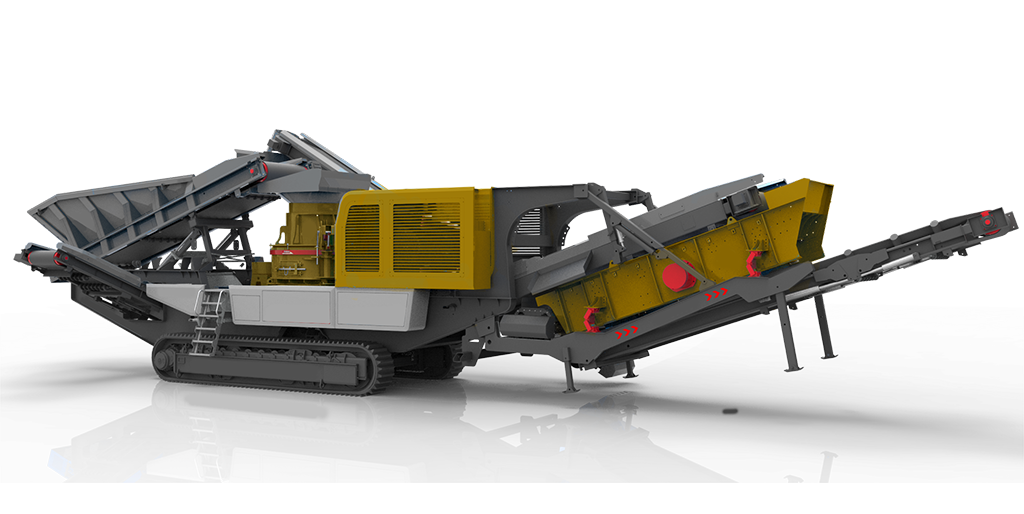

Mobile Vertical Shaft Impactor

Trimax Challenger CMC Vertical Shaft Impactors are commonly used for the production of road base, high quality manufactured sand, and highly valued cubical products. The Trimax Automated Control System (ACS) comes standard and ensures optimal performance of your VSI. It monitors the bearings’ temperatures and vibration levels. An alarm will be raised if any faults are detected. In severe cases, an auto-stop function will be activated in order to protect the VSI from damage.

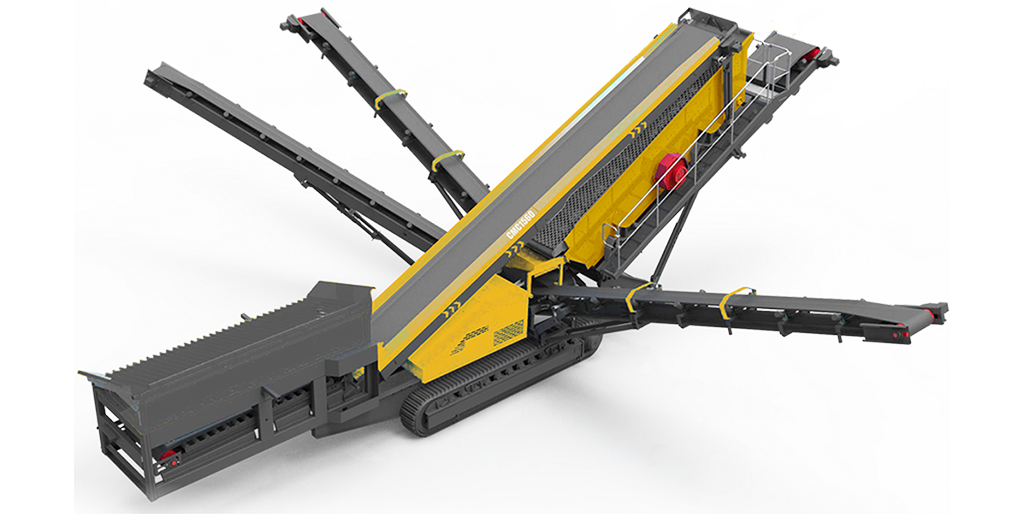

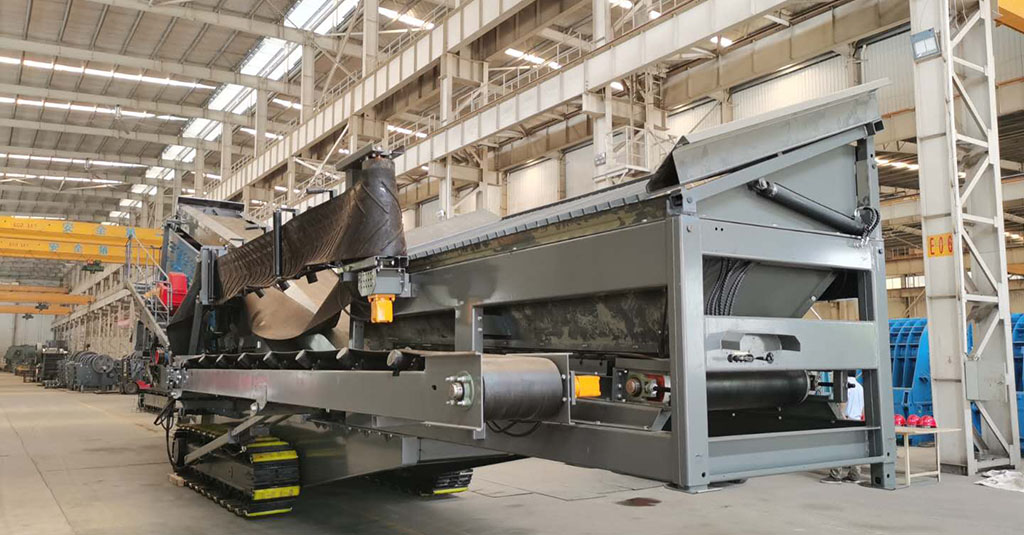

Mobile Vibrating Screen

Every care & consideration has been taken into account in the design of the Trimax CMC Vibrating Screen in order to optimise its feeding and screening capacity and efficiency, ranging from the large feed hopper expandable up to 8.3 cubic metres, 1200mm wide feed hopper conveyor for maximised feeding, large screening area, and high conveyor discharge heights.

Download the Challenger CMC Mobile Plants Catalog?
